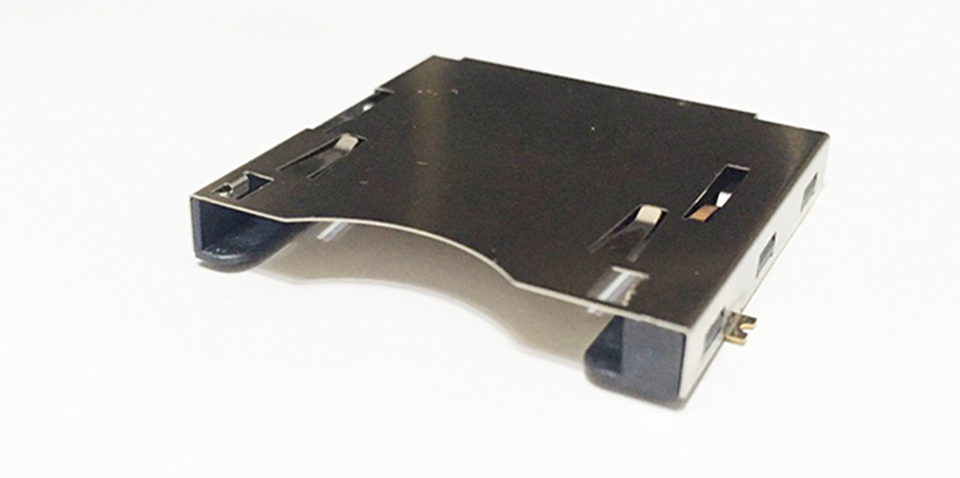

CompactFlash Card Connector - Express B Type - Push Pull

•
  CF Express Card Host Connector, B Type, 21Pin, R/A SMT Push Pull, With Two Posts

  • Dimensions: 34.45x36.8x4.87 (at maximum)
  • P/N: 139F40-N5ATG320



• Material & Finish:

  • Housing: High Temperature Thermoplastic With Glass Fiber Filler, UL94V-0 Rated, Coloer In Black
  • Metal Shell: Stainless Steel SUS 304, Gold Flash Plating on Solder Area
  • Contact: Copper Alloy, 15u" Gold Plating On Contact Area, Tin Plated On Solder Area, Nickel Under Plated Overall

  Electrical Specification

  • Current: DC 0.5A
  • Voltage: DC 5V
  • Dielectric Withstanding Voltage: 500V AC RMS For One Minute

  Operation Temperature: -25°C TO +85°C
